Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Name: Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems
Brand: Winroller
Price: 1 USD

Wholesale Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems from china suppliers

Brand Name : Winroller

Model Number : Winroller Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Certification : CE,SGS,ISO9001,ROHS,UL

Place of Origin : China Jiangsu

MOQ : 1stick

Price : Contact Us

Payment Terms : TT, L/C

Supply Ability : 1000000/year

Delivery Time : 7-15 word days

Packaging Details : Wooden case

Product Name : Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Cylinder Material : Galvanised Steel | Stainless Steel | Aluminium | PVC

Bearing Material : Plastics bearing housing

Working temperature : Normal temperature (-5 ~ +40 ℃)

Pipe Diameter : Φ25mm | Φ38mm | Φ50mm | Φ60mm Custom Diameter

Maximum Speed : 120m/min

Width : 400mm | 500mm | 600mm | 700mm | 800mm | or Customized

Function : Suitable for cargo roller conveying

Contact Now

Features Overview of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Gravity conveyors are the most popular and simple method of conveying goods. Rollers are non-powered. Goods are moved and conveyed by gravity or human force. It is usually arranged horizontally or declined.

Horizontal Arrangement:
The goods are moved by human force. Suitable for the conveying of light weight products, short distances and infrequent work.

Declined Arrangement:
The goods are conveyed in the decline direction by gravity force. Increasing the weight of the goods and the angle of the decline increases the speed of the goods.

Function of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

※ Precision bearings, plastic components (optional anti-static design)
※ Anti-rust, beautiful, quiet operation
※ The circular design for two ends of the drum makes the conveying more smooth
※ Maximum speed :120m/min
※ Working temperature: normal temperature (-5 ~ +40 ℃)
Please contact us if humidity out of this scope.

Remarks:
Cannot be used for belt conveyor tensioning rollers

Application of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

It is simplest and widely used product in the gravity roller series. It is commonly used in carton conveying applications.

Technical Parameters of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems
Pipe diameter and wall thickness	Bearing	Axis center	Roller material
Pipe diameter and wall thickness	Bearing	Axis center	Galvanizing of carbon steel	Stainless	>Aluminium alloy	PVC
φ25*1.2 Non-standard		φ8/10	√	√
φ38*1.2/1.5	6002	φ10/12g	√	√
φ50*1.5/2.0	6002	11hex,φ12/15	√	√	√	√
φ60*1.5/2.0	6002	11hex,φ12/15	√	√	√	√

Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

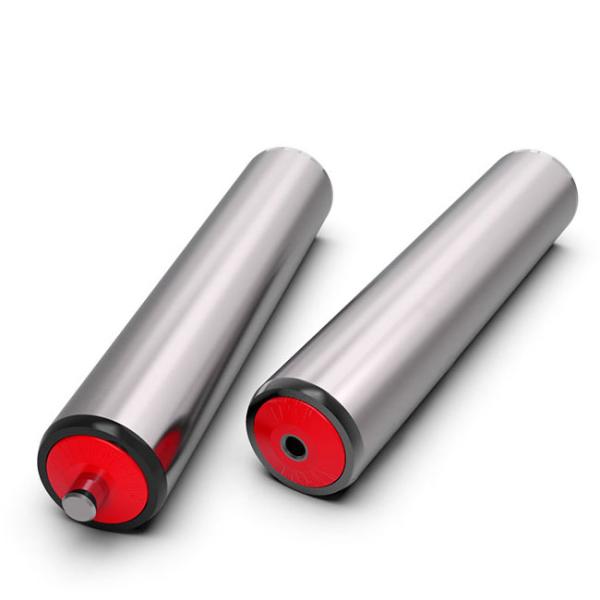

Feature Picture of Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems

Stainless Steel Gravity Conveyor Idler Roller For Conveying Systems
